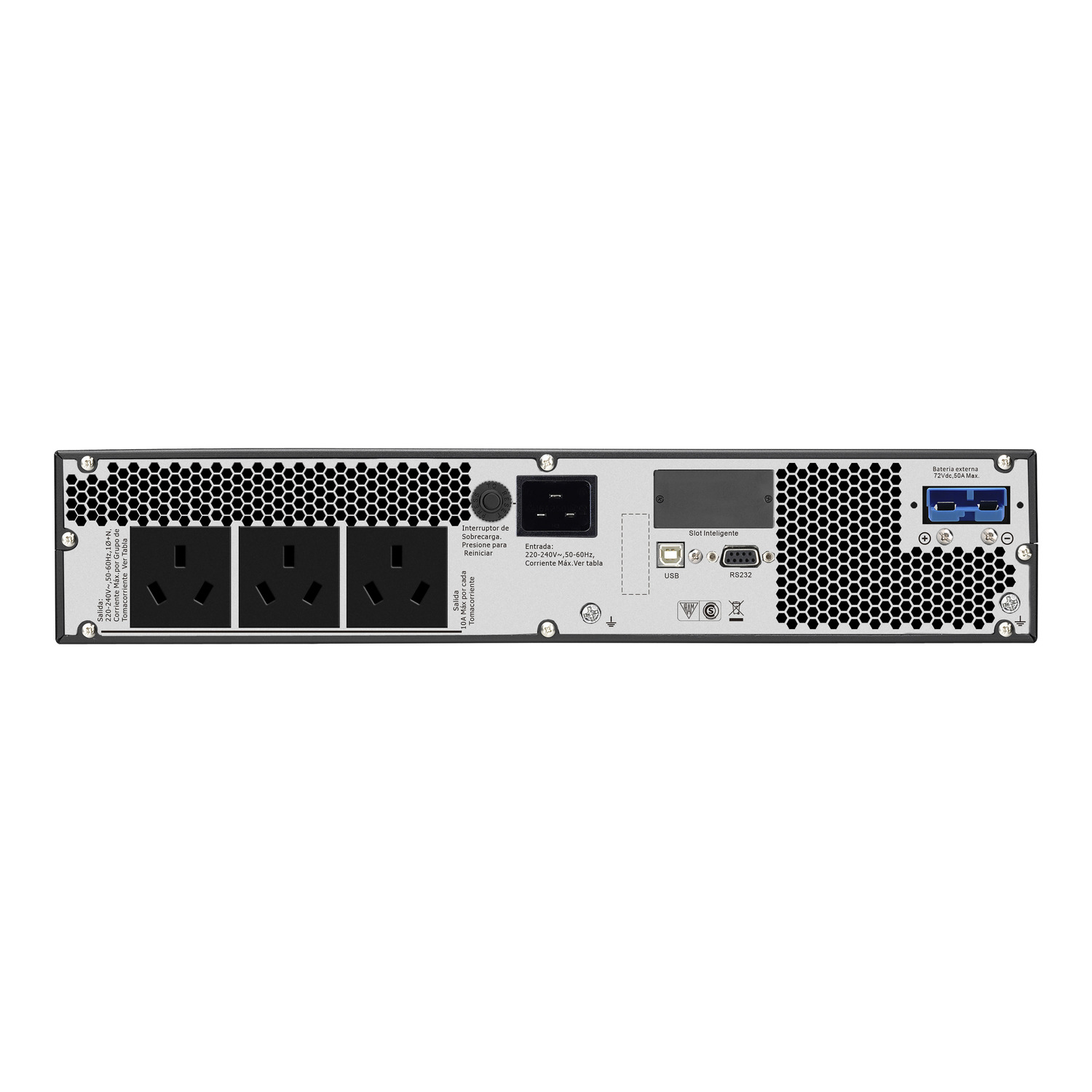

Apc Easy Ups OnLine Srv 3000Va Rm 230V

Descripción

Principal

Main input voltaje: 230 V AC 1 fase

Other input voltage

• 220 V
• 240 V

Input connection: IEC 60320 C20

Efficiency at full load

• 110 … 285 V media carga
• 160 … 280 V carga completa

Input frequency: «40 … 70 Hz» detección automática

Output voltaje:  230 V CA 1 fase

Other output voltage

• 220 V
• 240 V

Rated power in W:  2400 W

Rated power in VA:  3000 VA

Output connection:  3 Argentino

Bypass type: Desviación interna (automática y manual)

Crest factor: 3 : 1

Harmonic distortion: 3 %

Maximum configurable power in VA: 3000 VA

Maximum configurable power in W: 2400 W

UPS topology: On-Line

Waveform type: Onda senoidal

Half load runtime: 00:13:00 «1200 W»

Efficiency: 88 % (carga completa)

Output frequency: 50/60 Hz +/- 3 Hz sincronizada a red eléctrica principal

Complementario

Additional information: Configurable para tensión de salida nominal para 220 : 230 o 240

Battery type: Lead-acid external included

Control panel: Estatus multifuncional lcd y consola con control

Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

• Serial port
• USB port
• Available expansion slot

Surge energy rating: 600 J

Number of rack unit: «4U»

Number of cables: 1

Height: 172 mm

Width: 437 mm

Depth: 632 mm

Product weight: 52 kg

Mounting location: Frontal

Mounting preference: Baja

Mounting mode: Con montaje en bastidor

USB compatible: No

Mounting position: Horizontal

Mounting mode: Con montaje en bastidor with included kit

Provided equipment

• CD con software
• Soportes de montaje en rack
• Rieles de apoyo para Rack-mount
• Manual de usuario
• Cable USB

Number of power module filled slots: 0

Number of power module free slots: 0

Redundant: No

Range of producto: Easy UPS On-Line

Product or component type: «Fuente de alimentación ininterrumpida (UPS)»

Entorno

Product certification

• CE
• Iram

Ambient air temperature for operation: 0…40 °C

Ambient air temperature for storage: -20…50 °C

Storage altitude: 0…15000 m

Relative humidity: 0…95 % sin condensación

Storage relative humidity: 0…95 % sin condensación

Acoustic level: 50 dba

Heat dissipation: 910 Btu/h

Operating altitude: 0…3000 m

Batrías y tiempo de respaldo

Battery type: Batería de ácido sólido

Battery voltaje: 72 V

Extendable runtime: 1

Included battery module: 1

Empty battery slot: 0

Typical recharge time: 5,5 h

Battery life: 3…5 año(s)

Battery charging power: 350 W nominal

Battery power in Vah: 939 VAH modo de ejecución (inactivo)
