APC Back-UPS Pro 1500 1500VA

Descripción

Principal

Main input voltage: 230 V AC 1 fase

Switching current capacity: 10 A

Plug standard: Australia/China

Efficiency at full load

• ..300 V ajustable
• ..294 V

Input frequency

50/60 Hz +/- 3 Hz auto-sensing ((*))

Output voltage: 230 V CA 1 fase

Rated power in W: 865 W

Rated power in VA: 1500 VA

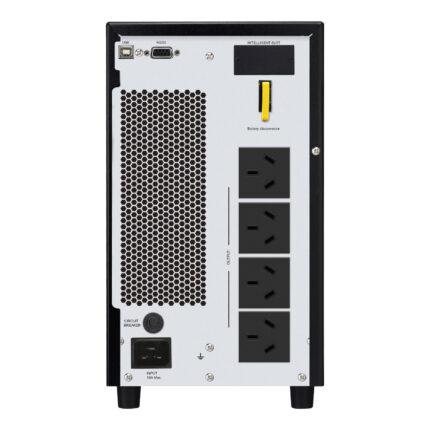

Output connection

• 4 Australian sobretensión
• 4 Australian

Type of USB power supply: None

Crest factor: 3 : 1

Maximum configurable power in VA: 1500 VA

Maximum configurable power in W: 865 W

Transfer time: Típico 10 ms: máximo 12 ms

UPS topology: Línea interactiva

Waveform type: Aproximación acompasada de una onda sinusoidal

Output frequency

• 50/60 Hz +/- 3 Hz sincronizada a red eléctrica principal
• 50/60 Hz +/- 1 Hz no sincronizada

Complementario

Battery type: Lead-acid internal included

Control panel: Estatus multifuncional lcd y consola con control

Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity: USB port

Surge energy rating:441 J

Cable length:  1,8 m

Color:  Negro

Height: 302 mm

Width: 112 mm

Depth: 382 mm

Product weight: 12,7 kg

Mounting preference: No preference

Mounting mode: No se puede montar en rack

Two post mountable: 0

USB compatible: Yes

Mounting mode: Tower

Number of power module filled slots: 0

Number of power module free slots: 0

Redundant: No

Range of producto: Back-UPS Pro

Product or component type: «Fuente de alimentación ininterrumpida (UPS)»

Entorno

Product certification: Iram

Standard

• EN / IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Ambient air temperature for operation:0…40 °C

Ambient air temperature for storage: -15…45 °C

Storage altitude: 0…15240 m

Relative humidity: 0…95 %

Storage relative humidity: 0…95 %

Acoustic level: 45 DBA

Operating altitude: 0…10000 pies

Baterías y tiempo de respaldo

Battery type: Batería de ácido sólido

Extendable runtime: 0

Included battery module: 0

Empty battery slot: 0

Typical recharge time: 8 h

RBC quantity: 1

Battery life: 3…5 año(s)

Battery charging power: 23 W nominal
