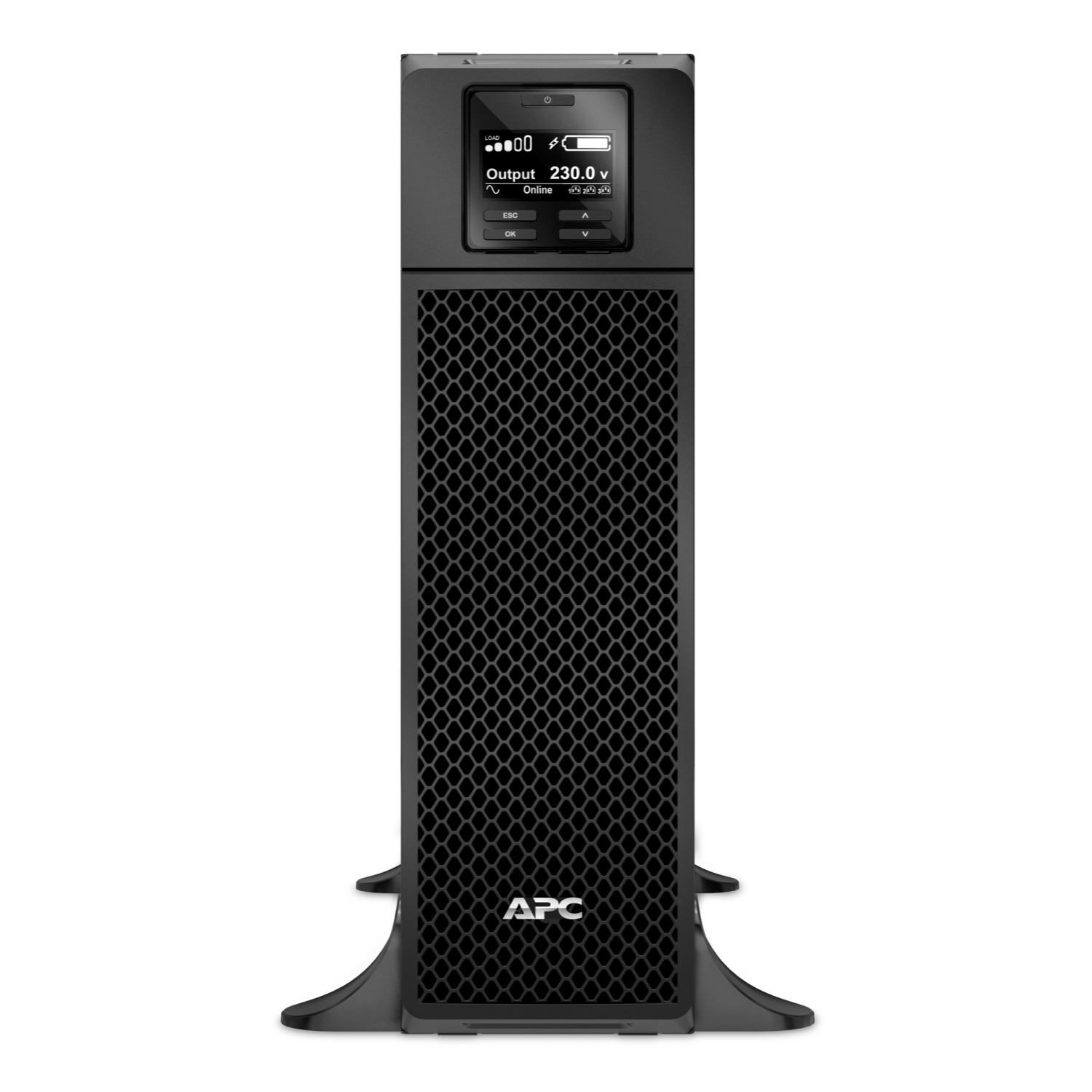

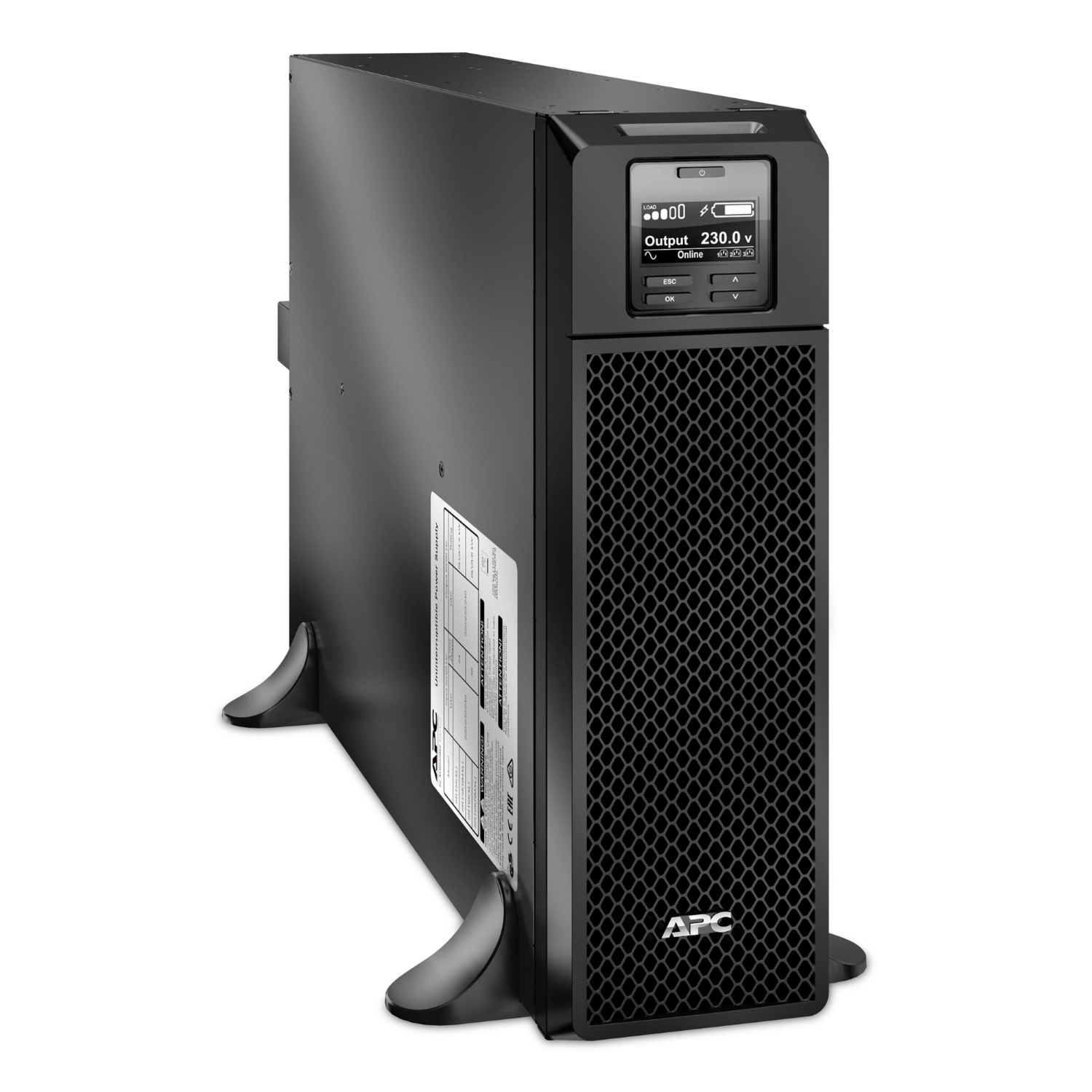

Smart-UPS SRT SRT5KXLI 5000VA

Descripción

Principal

Main input voltage: 230 V AC 1 fase

Other input voltage

• 220 V
• 240 V

Efficiency at full load: 100 … 275 V ajustable (media carga)

Input connection: 1 Cable duro 3-hilos (1PH+N+G)

Input frequency: «40 … 70 Hz» auto-sensing ((*))

Output voltage: 230 V 1 fase

Other output voltage

• 220 V
• 240 V

Rated power in W: 4500 W

Rated power in VA: 5000 VA

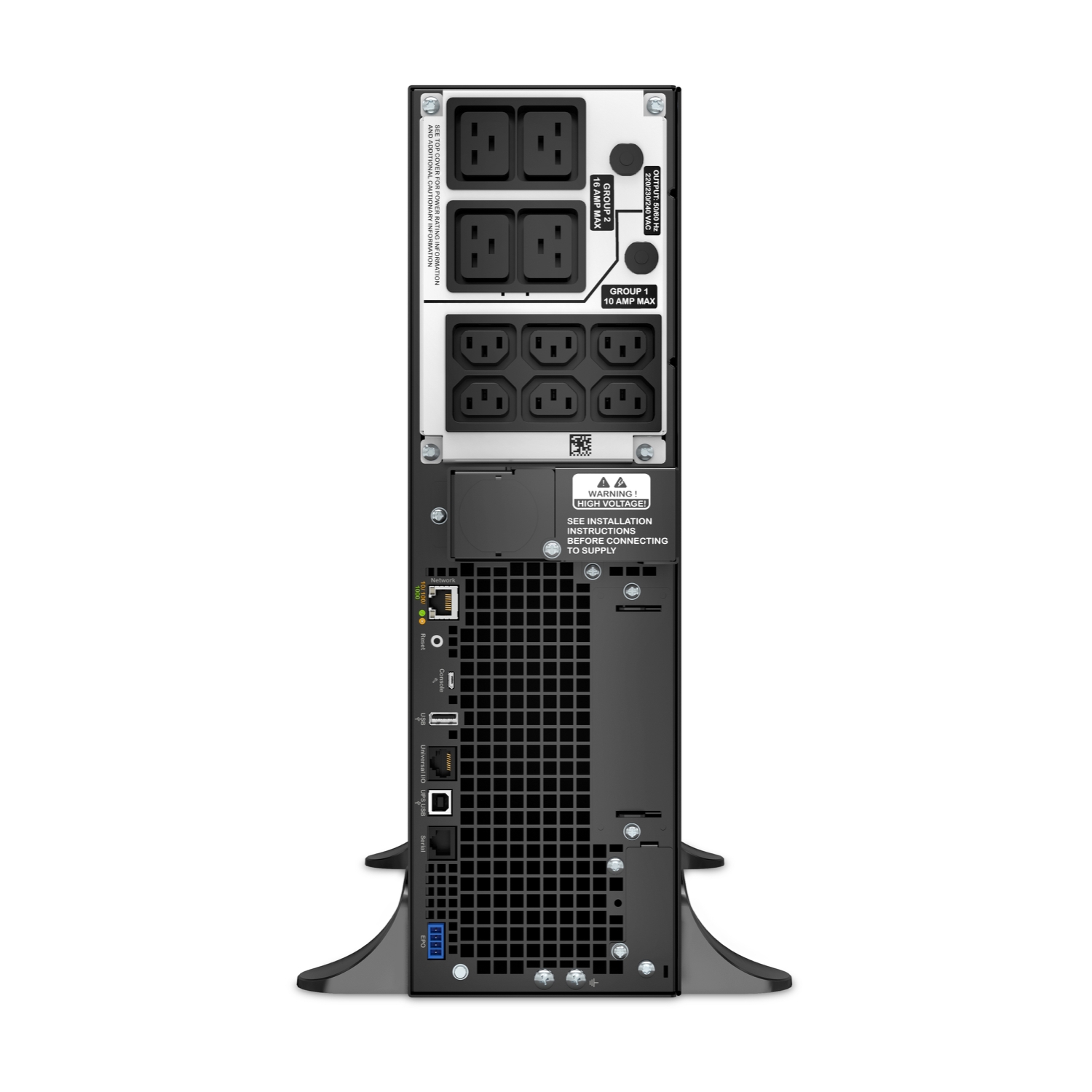

Output connection

• 6 IEC 60320 C13
• 2 «IEC JUMPERS»
• 4 IEC 60320 C19

Bypass type: Desviación interna (automática y manual)

Crest factor: 3 : 1

Harmonic distortion: Menos que 2%

Maximum configurable power in VA: 5000 VA

Maximum configurable power in W: 4500 W

UPS topology: On-Line

Waveform type: Onda senoidal

Output frequency: 50/60 Hz +/- 3 Hz sincronizada a red eléctrica principal

Complementario

Battery type: Lead-acid internal included

Emergency power off: Sí

Free slot: 1

Preinstalled device: Network management card 3 with environmental monitoring

Alarm: Audible and visible alarms : prioritized by severity

UPS connectivity

• Serial port
• USB port
• Pre-installed network management card 3

Surge energy rating: 480 J

Color: Negro

Height: 432 mm

Width: 130 mm

Depth: 719,4 mm

Product weight: 54,43 kg

Mounting location: Frontal

Mounting preference: No preference

Mounting mode: Montaje en rack con kit

Two post mountable: 0

USB compatible: Yes

Mounting mode: Con montaje en bastidor with included kit

Provided equipment

• CD con software
• Cable de comunicaciones
• CD de documentación
• Guía de instalación
• Pies desmontables
• Sonda de temperatura
• Cable USB
• Tarjeta de garantía
• Tarjeta de manejo Web/SNMP

Number of power module filled slots: 0

Number of power module free slots: 0

Additional specification: High density

Redundant: No

Range of product: Smart-UPS On-Line

Product or component type: «Fuente de alimentación ininterrumpida (UPS)»

Entorno

Product certification

• CE
• EAC
• Iram
• RCM
• VDE

Marking: Certificación CE

Standard

• EN / IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Ambient air temperature for operation: 0…40 °C

Ambient air temperature for storage: -15…45 °C

Storage altitude: 0…15240 m

IP protection: IP20

Relative humidity: 0…95 % sin condensación

Storage relative humidity: 0…95 % sin condensación

Acoustic level: 55 DBA

Heat dissipation: 931 Btu/h

Operating altitude: 0…10000 pies

Baterías y tiempo de respaldo

Battery type: Batería de ácido sólido

Battery voltage: 192 V

Extendable runtime: 1

Included battery module: 2

Empty battery slot: 0

Typical recharge time: 1,5 h

RBC quantity: 1

Battery life: 3…5 año(s)

Battery charging power: 560 W nominal
