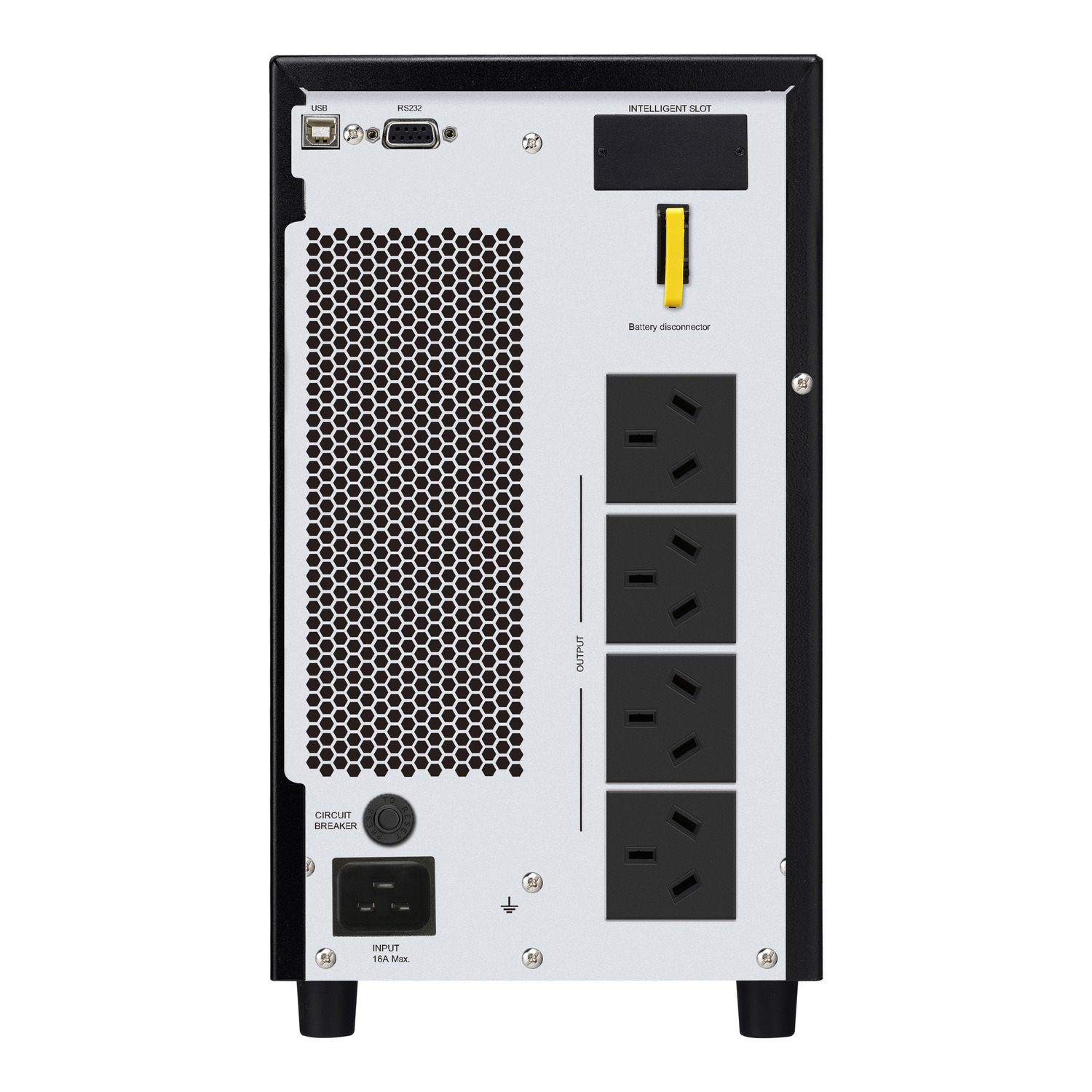

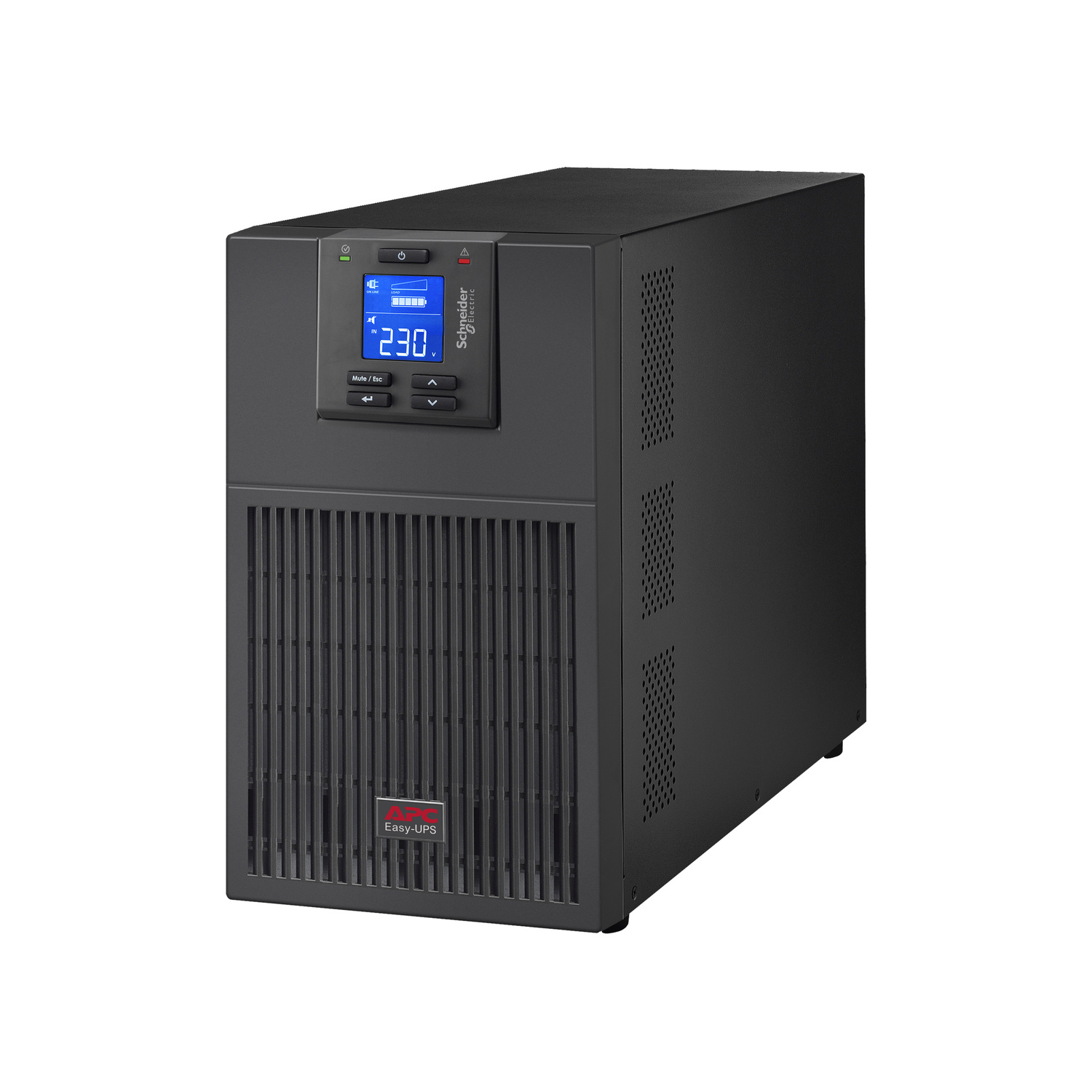

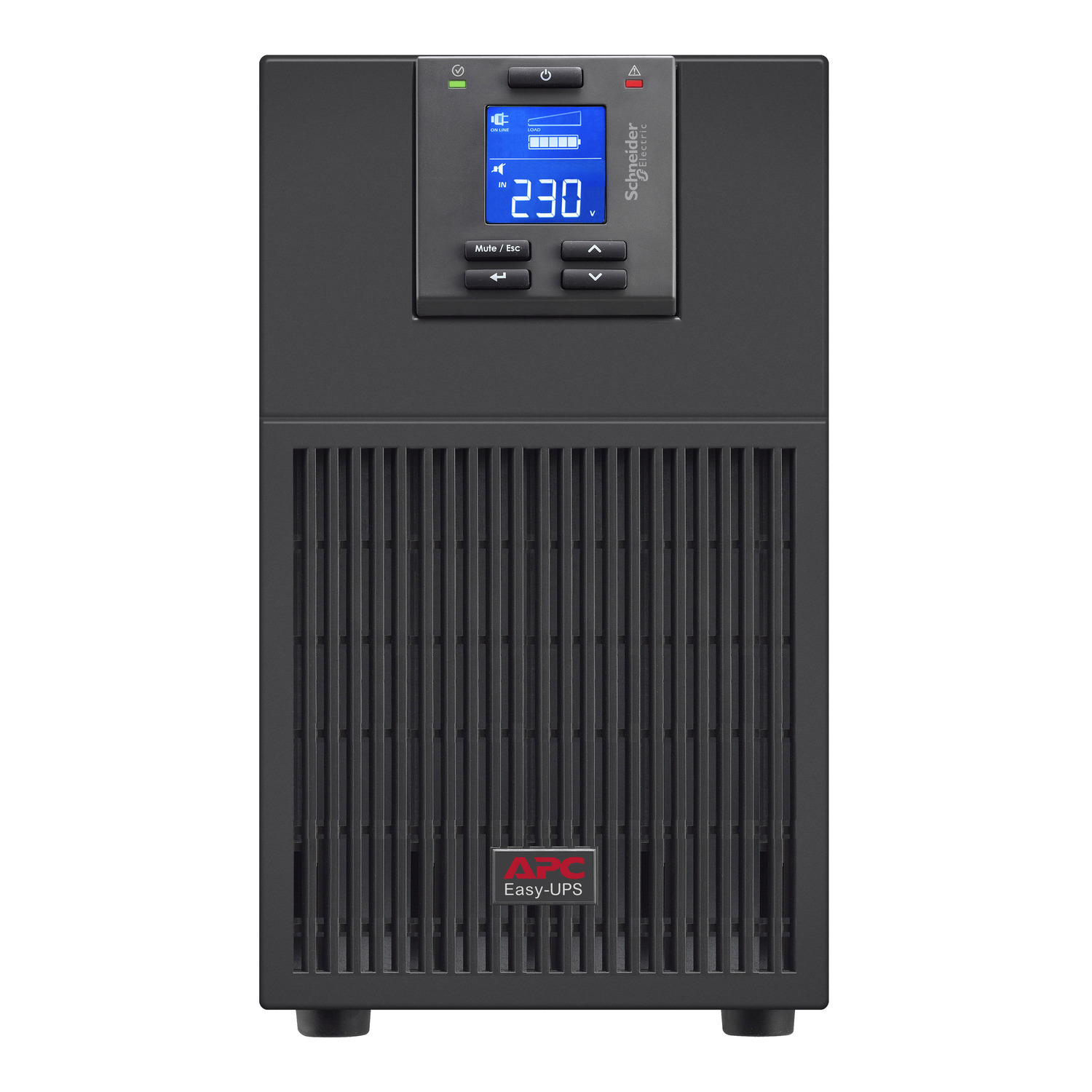

Easy UPS SRV3000 3000VA

Descripción

Principal

Main input voltaje: 230 V AC 1 fase

Other input voltage

• 220 V
• 240 V

Input connection: IEC 60320 C20

Efficiency at full load

• 110 … 285 V media carga
• 160 … 280 V carga completa

Input frequency: «40 … 70 Hz» detección automática

Output voltage: 230 V CA 1 fase

Other output voltage

• 220 V
• 240 V

Rated power in W: 2400 W

Rated power in VA: 3000 VA

Output connection: 4 Argentino

Bypass type: Desviación interna (automática y manual)

Harmonic distortion: 3 %

Maximum configurable power in VA: 3000 VA

Maximum configurable power in W: 2400 W

UPS topology: On-Line

Waveform type: Onda senoidal

Efficiency: 88 % (carga completa)

Output frequency: 50/60 Hz +/- 3 Hz sincronizada a red eléctrica principal

Complementario

Battery type: Lead-acid internal included

Control panel: Estatus multifuncional lcd y consola con control

Free slot: 1

Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

UPS connectivity

• Serial port
• USB port
• Available expansion slot

Surge energy rating: 600 J

Number of cables: 1

Color: Negro (RAL 7010)

Height: 336 mm

Width: 190 mm

Depth: 425 mm

Product weight: 26,8 kg

Mounting location: Frontal

Mounting preference: No preference

Mounting mode: No se puede montar en rack

USB compatible: Yes

Mounting position: Vertical

Mounting mode: Tower

Number of power module filled slots: 0

Number of power module free slots: 0

Redundant: No

Range of product: Easy UPS On-Line

Product or component type: «Fuente de alimentación ininterrumpida (UPS)»

Entorno

Product certification

• CE
• Iram

Standard

• EN / IEC 62040-1:2019/A11:2021
• EN/IEC 62040-2:2006/AC:2006
• EN/IEC 62040-2:2018

Ambient air temperature for operation: 0…40 °C

Ambient air temperature for storage: -20…50 °C

Storage altitude: 0…15000 m

IP protection: IP20

Relative humidity: 0…95 % sin condensación

Storage relative humidity: 0…95 % sin condensación

Acoustic level: 50 dba

Heat dissipation: 910 Btu/h

Operating altitude: 0…3000 m

Baterías y tiempo de respaldo

Battery type: Batería de ácido sólido

Battery voltaje: 72 V

Extendable runtime: 0

Included battery module: 0

Empty battery slot: 0

Typical recharge time: 4 h

Battery life: 3…5 año(s)

Battery charging power: 60 W nominal

Battery power in Vah: 473 VAH modo de ejecución (inactivo)
